12 Month Warranty 4 Straps PET PP Plastic Strap Production Line
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | JIN MACHINE |
| Certification: | CE;SGS;ISO9001 |
| Model Number: | JIN-SJPET-33 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard wooden frame and wooden case is available for Jin Machine Excellent Rigid Packaging drying dryer for plastic recycling |
| Delivery Time: | 45 work days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Product Name: | PET Strap Production Line | Raw Material: | PET Flakes Or Granules |
|---|---|---|---|
| Capacity: | 200-800 Kg / H | Application: | Plastic Strap/band/packing |
| Material: | SUS 304 Stainless Steel | Warranty: | 12 Months |
| Power: | 80- 200Kw | Motor: | Siemens Brand |
| Production Period: | 45 Days | ||
| High Light: | PP Plastic Strap Production Line,4 Straps Plastic Strap Production Line,12 Month Warranty Plastic Strap Production |
||
Product Description
12 Month Warranty 4 Straps PET PP Plastic Strap Production Line
2-4 straps Heavy model PET/PP strapping band production line
1. Technical parameter
| Material | Extruder | Width (mm) | Strap quality | Output (kg/h) |
| PET/PP | 90 | 9-19 | 2 | PP 150-200/PET 200 |
| PET | 110 | 9-25 | 4 | 350-400 |
| PET | 120 | 9-32 | 4-8 | 500-600 |
| PET | 130 | 9-32 | 8-12 | 800-900 |
2. Product description
PET packing strap, also known as PET plastic belt, is a world widely used new type package material substitute for steel belt. With years development on it and decrease on cost, it is now widely used in steel industry ,Brick ceramics, screw industry, electric industry, textile industry, and wood industry. It is most widely used steel belt substitute with high strength.
Feature 1
- Raw material process and extrusion system.
- High performance crystallizing and drying system.
- Production can use 100% recycled material to obtain a high add value strapping band.
- Special designed PET screw, select of single or twin screw extruder.
Feature 2
A: Continuous back-flush screen changer operating technology (Europe technology)
B.100% full automatic self-cleaning screen changer,
C. Double column 4 screen cavities.
D. PLC control, change screen without production interrupted, not influence the production quality.
Feature 3
- Special designed hot air stretching oven.
- Configured with heating unit and automatic temperature control system
- High performance heat insulating layer
- Better on strip stretching and heating, rapid heating, complete strip orientation stretching.
Feature 4

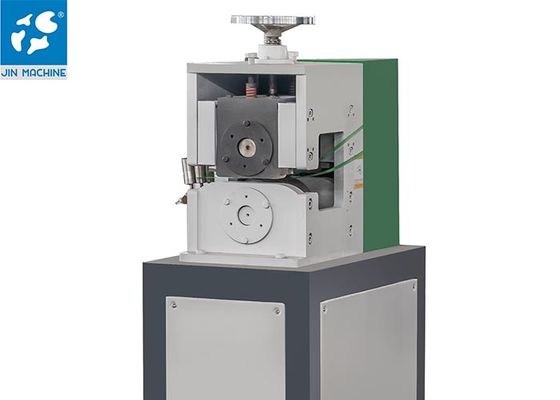

- Embossing machine, hydraulic control.
- Customization designed embossing roll patter available
- Configured with synchronous control system, adjust embossing roll vertical position and embossing strength accurately.
Feature 5
- Heating oven for sizing
- Special designed technology, make sure the strip forming rapidly
- Prevent the strip from un-orientation after orientation, eliminate internal stress, make sure the quality of strip accuracy and quality
Feature 6
- Strapping accumulator unit
- Strap length and the winding tension can be controlled according to strap wind speed
- Two times completely cooling strapping
- Reduce strapping winding camber
