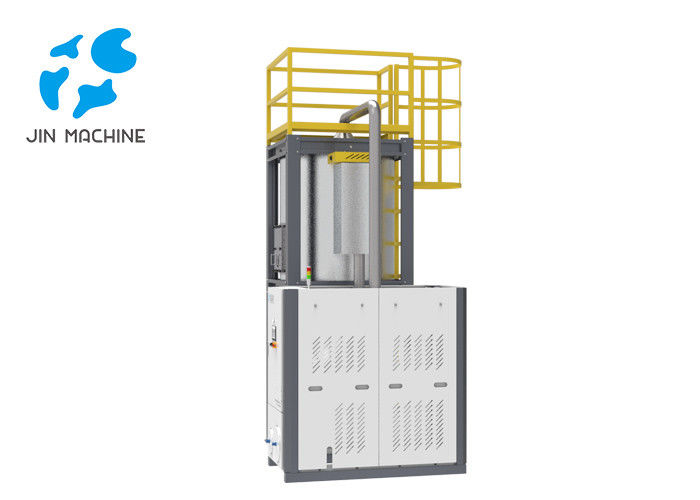

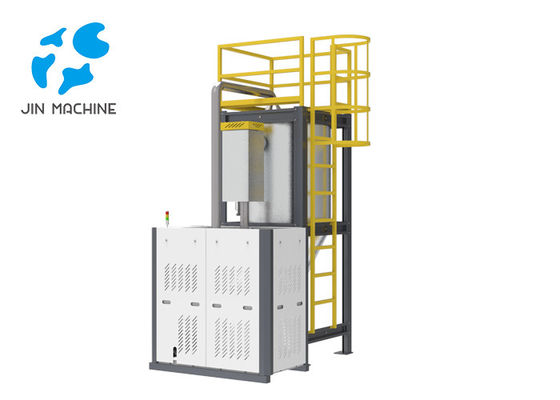

1200Kg/H 230MPa Air Pressure Plastic Material Dryer
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | JIN MACHINE |
| Certification: | CE;SGS;ISO9001 |
| Model Number: | CSG-3000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard wooden frame and wooden case is available for Jin Machine Excellent Rigid Packaging drying dryer for plastic recycling |
| Delivery Time: | 25 work days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Throughput: | 1200 Kg/h | Material: | SUS 304 |
|---|---|---|---|
| Controler: | Simens PLC | Dew Point: | -60℃ |
| Production Period: | 30 Days | Product: | Plastic Material Dryer |
| High Light: | 230MPa Plastic Material Dryer,1200Kg/H Plastic Material Dryer,230MPa Air Pressure Plastic Dryer |
||
Product Description
1200Kg/H 230MPa Air Pressure Plastic Material Dryer
Intelligent Integrated Plastic Pellet Dryer -230mpa Air Pressure Easy Operating
1.Introduction of plastic pellet dryer
CSG series dehumidifying dryers are composed of HB series hoopers and DAG series dry air generators. They can automatically adjust the control parameters according to various temperature changes, such as material temperature and air temperature, so as to achieve intelligent control, improve efficiency and save energy.
CSG 270 standard dryer is a kind of medium dehumidifying dryer, composed of one DAG integrated dry air generator and one HB integrated drying hooper. It adopts traditional two desiccant beds drying technology and further optimize the structure of equipment in order to meet all kinds of production requirements with flexible collocation of hooper sizes. It is drying capacity is from 15 kg/h to 120 kg/h.
This series are applicable to dehumidification of all kinds of engineering plastic granules and pellets, for various plastic granulation production lines, extrusion production lines and injection molding production lines.
2.Technology Advantages
| DAG -integrated dry air generator | HB seires integrated drying hooper |
|
1. Conveniently moved and flexibly applied in the changeable workshop environment, the integrated dry air generator is equipped with pulleys. 2. Does not require condenser and cooling water, the integrated dry air generator is equipped with independent radiator. 3. it adopts the two desiccant beds drying technology 4.Simens PLC control, which can work continuously and automatically 24 hours without human operation. 5. Automatic dewpoint control system, until the dew point down to - 25 ℃, PLC program automatically replace new desiccant bed to work. 6.Material temperature control system, can display the material temperature in 4 areas of the hooper and analyze the drying effect. 7. Internal heater and intelligent self-adjusting PID temperature control, 60 ℃ to 300 ℃ 8.No moving partsin the whole machine, is safe and reliable.
9.Self-diagnosing function, to automatically determine fault location, such as dew point, temperature,electrical fault, etc. 10.10.2-inch Simens touch screen, visual and audible device control and failure alarm. |
1. Conveniently moved and flexibly applied in the changeable workshop environment, the integrated dry air generator is equipped with pulleys. 2. Double-layer drying hooper, with mirror stainless steel inside, smooth and pollution-free, and orange stripes aluminum plate outside, simple and beautiful. The insulation layer is wet aluminum silicate cotton, with excellent insulation performance. 3. 150L Minmum volume, the hooper body structure is scientifically designed without dead angle of material flow. 4. All-round safety protection, firm and durable, reliable and beautiful. 5. large stainless steel double-layer observation door, it is convenient to observe and clean while drying. 6. One heater with PLC control, the heating power is up to 48kw,and equipped with bimetal thermometer, temperature control switch, triple safety, stable and reliable. 7. Continuous measurement of material temperature in 4 areas to show customers the change of raw material temperature. |
3. Our service
- we will provide all the machines for the complete production according to customer's requirements.
- we will provide complete service for factory layout and other information to help customer to build the factory.
- For long-term cooperation, we always provide good quality, good price and good service to customer.
