CSG Series SUS304 2400Kg/H Dehumidifying Hopper Dryer

CSG Series SUS304 2400Kg/H Dehumidifying Hopper Dryer

Product Details:

Place of Origin: CHINA
Brand Name: JIN MACHINE
Certification: CE;SGS;ISO9001
Model Number: CSG-3000

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard wooden frame and wooden case is available for Jin Machine Excellent Rigid Packaging drying dryer for plastic recycling
Delivery Time: 25 work days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 10 sets per month
Get Best Price Contact Now

Detail Information

Throughput: 1200-2400 Kg/h Material: SUS 304
Hooper Structure: Double Isulation Controler: Simens PLC
Dew Point: -60℃ Isulation: Aluminum Silicate Cotton
Control Screen: 10.2-inch Touch Screed Air Folw: Max 3000 M³/h
Air Pressure: -350 Mbar Drying Temp: Max 200℃
HB Series: Double Heating Drying Hooper Production Period: 30 Days
High Light:

2400Kg/H Dehumidifying Hopper Dryer

,

SUS304 Dehumidifying Hopper Dryer

,

CSG Dehumidifying Hopper Dryer

Product Description

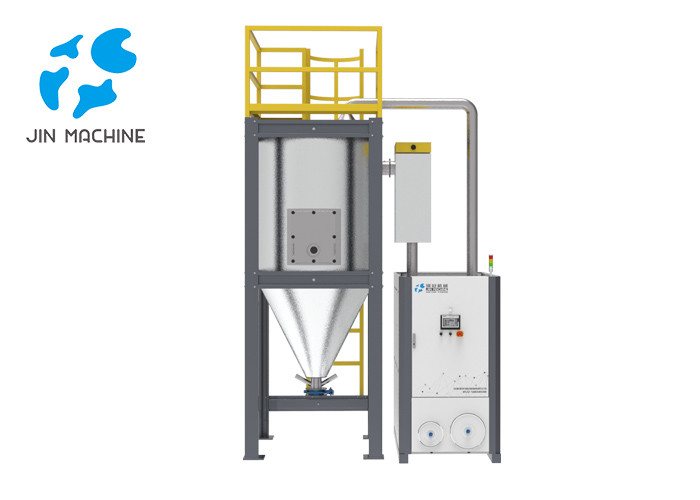

CSG Series SUS304 2400Kg/H Dehumidifying Hopper Dryer



CSG 3000 Double-Heater Dryer



CSG series dehumidifying dryers are composed of HB series hoopers and DAG series dry air generators. They can automatically adjust the control parameters according to various temperature changes, such as material temperature and air temperature, so as to achieve intelligent control, improve efficiency and save energy.



CSG3000 series is a kind of huge dehumidifying dryer, is composed of one DAG series 3-beds dry air generator and one HB Double Heaters drying hooper. It adopts the world's leading three desiccant beds drying technology and further optimizes its structure, equipped with special two-stage heating body structure, suitable for the drying demand of productionmore than 1200kg/h, with a maximum capacity of 2400kg/h. It can be flexibly matched with the whole HB series drying hoopers.



This series are applicable to dehumidification of all kinds of engineering plastic granules and pellets, for various plastic granulation production lines, extrusion production lines and injection molding production lines.





CSG Series SUS304 2400Kg/H Dehumidifying Hopper Dryer 0

Technology Advantages



DAG Series 3-bed dry air generator HB Series Double-Layer drying hooper

1.Simens PLC control, which can work continuously and automatically 24 hours without human operation.

2. Three desiccant beds drying technology, suitable for large-scale production demand due to internal structure optimization, which can effectively reduce the load of fans, improve drying efficiency and save energy.

3. Automatic dew point control system, until the dew point down to - 25 ℃, PLC program automatically replace new desiccant bed to work.

4.Central heating control system, which can control multiple HBseries drying hoopers in one set.

5. Material temperature control system, can display the material temperature in 4 large areas of the hooper and analyze the drying effect.

6. Intelligent self-adjusting PID temperature control, 60 ℃ to 300 ℃

7.No need for cooling water, just ordinary circulating water is ok.

8.No moving parts in the whole machine, is safe and reliable.

9.Self-diagnosing function, to automatically determine fault location, such as dew point, temperature,electrical fault, etc.

10.10.2-inch Simens touch screen, visual and audible device control and failure alarm.

11. Scientific designed structure, reasonable, beautiful, firm and durable structure.

1. Double-layer drying hooper, with mirror stainless steel inside, smooth and pollution-free, and orange stripes aluminum plate outside, simple and beautiful. The insulation layer is wet aluminum silicate cotton, with excellent insulation performance.

2. 12000L Maximum volume, the hooper body structure is scientifically designed without dead angle of material flow.

3. All-round safety protection, firm and durable, reliable and beautiful.

4. large stainless steel double-layer observation door, it is convenient to observe and clean while drying.

5. Independent electric box to control the heater and fan.

6. Two heaters, heating power up to 48kw each, 96 kw in both, and equipped with bimetal thermometer, temperature control switch, triple insurance, stable and reliable, innovative two-stage heating treatment, leading the world.

7. One 15kw vortex air pump, air volume of 1050 m3/h, innovative pre-drying treatment.

8. Continuous measurement of material temperature in 4 areas to show customer the change of raw material temperature.
