• 120Kg/H Plastic Material Dryer
120Kg/H Plastic Material Dryer

120Kg/H Plastic Material Dryer

Product Details:

Place of Origin: CHINA
Certification: CE;SGS;ISO9001
Model Number: CSG-3000

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard wooden frame and wooden case is available for Jin Machine Excellent Rigid Packaging drying dryer for plastic recycling
Delivery Time: 25 work days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 10 sets per month
Get Best Price Contact Now

Detail Information

Throughput: 800 Kg/h Material: SUS 304
Controler: Simens PLC Dew Point: -60℃
Production Period: 30 Days Product: Plastic Material Dryer
High Light:

120Kg/H Plastic Material Dryer


120Kg/H Plastic Dryer


Plastic Material Dryer 120Kg/H

Product Description

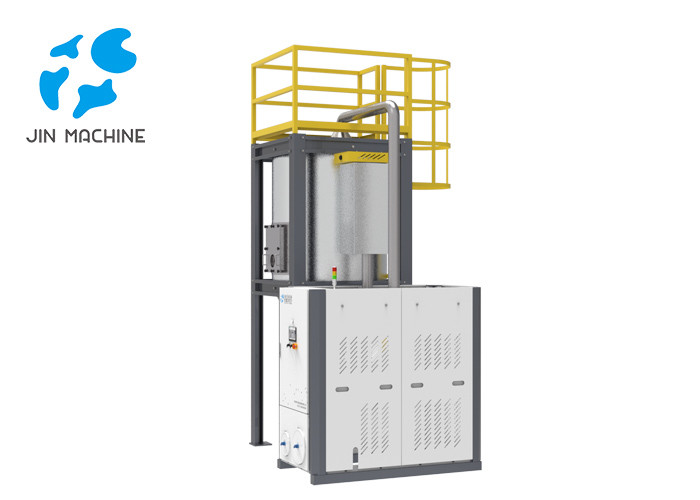

120Kg/H Plastic Material Dryer

CSG 1000 Series Standard Dryer


1. Introduction


CSG series dehumidifying dryers are composed of HB series hoopers and DAG series dry air generators. They can automatically adjust the control parameters according to various temperature changes, such as material temperature and air temperature, so as to achieve intelligent control, improve efficiency and save energy.


CSG 2000 standard dryer is a kind of medium dehumidifying dryer, composed of one DAG 2 beds dry air generator and one HB standard drying hooper. It adopts traditional two desiccant beds drying technology and further optimize the structure of equipment in order to meet all kinds of production requirements with flexible collocation of hooper sizes. It is drying capacity is from 120 kg/h to 600 kg/h.


This series are applicable to dehumidification of all kinds of engineering plastic granules and pellets, for various plastic granulation production lines, extrusion production lines and injection molding production lines.


2.Technology Advantages of CSG standard dryer


DAG -2 beds dry air generator HB-Standard drying hooper

1.Simens PLC control, whichcan work continuously and automatically 24 hours without human operation.

2. Automatic dewpoint control system, until the dew point down to - 25 ℃, PLC program automatically replace new desiccant bed to work.

3.Central heatingcontrol system, which can control multiple HB series drying hoopers in one set.

4. Material temperature control system, candisplay the material temperature in 4 large areas of the barrel and analyze thedrying effect.

5. Intelligentself-adjusting PID temperature control, 60 ℃ to 300 ℃

6.No need forcooling water, just ordinary circulating water is ok.

7.No moving partsin the whole machine, is safe and reliable.

8.Self-diagnosing function, to automatically determine fault location, such as dew point, temperature,electrical fault, etc.

9.10.2-inchSimens touch screen, visual and audible device control and failure alarm.

10. Scientificdesigned structure, reasonable, beautiful, firm and durable structure.

1. Double-layer drying hooper,with mirror stainless steel inside, smooth and pollution-free, and orange stripes aluminum plate outside, simple and beautiful. The insulation layer is wet aluminum silicate cotton, with excellent insulation performance.

2. 5000L Maximum volume, the hooper body structure is scientifically designed without dead angle of material flow.

3. All-round safety protection, firm and durable, reliable and beautiful.

4. largestainless steel double-layer observation door, it is convenient to observe and clean while drying.

5. One heater with PLC control, the heating power is up to 48kw,and equipped with bimetal thermometer, temperature control switch, triple safety, stable and reliable.

6. Continuous measurement of material temperature in 4 areas to show customers the change of raw material temperature.



1. we will provide all the machines for the complete production according to customer's requirements.
2. we will provide complete service for factory layout and other information to help customer to build the factory.
3. we will provide good service for machine installation and training, until the customers can run the machines and make stably production.
4. Except one year quality guarantee, we will provide after-sell service for all the life.
5. for long-term cooperation, we always provide good quality, good price and good service to customer.
