• KFJ Series 40kw 150kg Vacuum Powder Feeder
KFJ Series 40kw 150kg Vacuum Powder Feeder

KFJ Series 40kw 150kg Vacuum Powder Feeder

Product Details:

Place of Origin: CHINA
Certification: CE Certificate
Model Number: KFJ

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard wooden frame and wooden case is available for Jin Machine Excellent Rigid Packaging drying dryer for plastic recycling
Delivery Time: 40 work days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 10 sets per month
Get Best Price Contact Now

Detail Information

Application: CONVEYING Material: 304 Stainless Steel
Warranty: 12 Months Production Period: 40 Days
Capacity: 150kg Heater Power: 40kw
Voltage: 220v 380v
High Light:

150kg Vacuum Powder Feeder


40kw Vacuum Powder Feeder


KFJ Vacuum Powder Feeder

Product Description

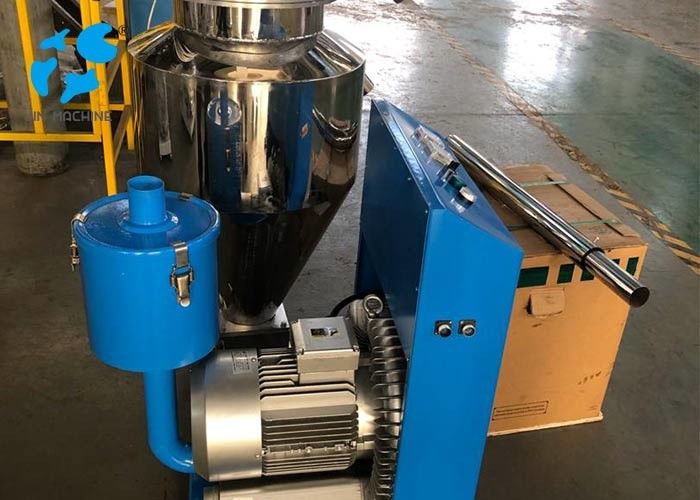

KFJ Series 40kw 150kg Vacuum Powder Feeder




KFJ series powder vacuum feeding loader is one kind of new design conveying system. It is widely used for replacing traditional screw conveyor, bucket elevator, grain auger etc.. It adopts vacuum absorption transported principle. The whole process can be designed to one closed system. Therefore, it can realize dust-free and convnient conveying. It can well match all kinds of profile unit, mixing system, chemical processing equipment and replace artificial feeding completely. Vacuum conveying system is the ideal environmental protection powder conveying and protecting worker's health equipment.


The minimum configuration of a complete conveyor system consists of at least one product intake, one transport line and the actual vacuum conveyor with its control system. A feed station or a conveyor gun is used as the product intake depending on whether the material to be transported is located in a silo, a Big-Bag station, a barrel or a different type of container. It is the link to the transport line and supplies additional air to the material under the influence of the vacuum (false air). This creates a material/air mixture, which is now transported through the transport line to the conveyor unimpeded. A pipeline or a vacuum-tight hose is used as the transport line. Once the transported material has reached the vacuum conveyor, filters separate the air from the material/air mixture and it collects in the collection tank on the conveyor‘s bottom valve.
Once the desired quantity of material has collected in the conveyor over the set vacuum time, the control system shuts down the vacuum supply and opens the bottom valve. The transported material reaches its destination, which may be containers or, for example, even products on a conveyor belt, over which the transported material is sprinkled.







Because our engineers concentrate all minds on the dehumidifying improvement.



Because we design customers' solutions systematically and individually.



Because our projects innovate constantly due to increasing experiments.



Because our products keep low price, but still satisfied performance.



Because our people work seriously and responsibly.


Safety protection


1. Compressed air protection.

If there is little or inadequate compressed air, the equipment will stop working automatically to avoid flowing in high dew point air due to the failure of conversion valve.

2. The drying temperature overrun protection.

if the temperature of drying air overrun, drying fan will stop working automatically from coagulation due to excessive heat

3. The phase sequence protection.

if the vanes' motion is reverse, vortex pump will stop working automatically.

4.the real-time reminding of air filters cleaning

if air filters are filled with dust, the equipment will immediately remind you it is time to clean them.

5. The temperature sensor break line protection.

Alarm prompt temperature sensor fault.

all the faults will be judged automatically and showed in the Siemens screen, in order to facilite customers troubleshooting.
